Authorized Dealer
Tri-Flex
BURKE BARIATRIC BED

Quality Bariatric Products Manufactured by Burke Inc.
The leading maker and "Gold Standard" of obese bed products in America

Burke Bariatric Heavy Duty Hospital Beds Burke triflex and Burke bariatric


1(800)733-1818

BURKE TRIFLEX
BURKE BARIATRIC TREATMENT SYSTEM II

OPTIONS

 Tri-Flex II Burke Bariatric Hospital Beds

FEATURES

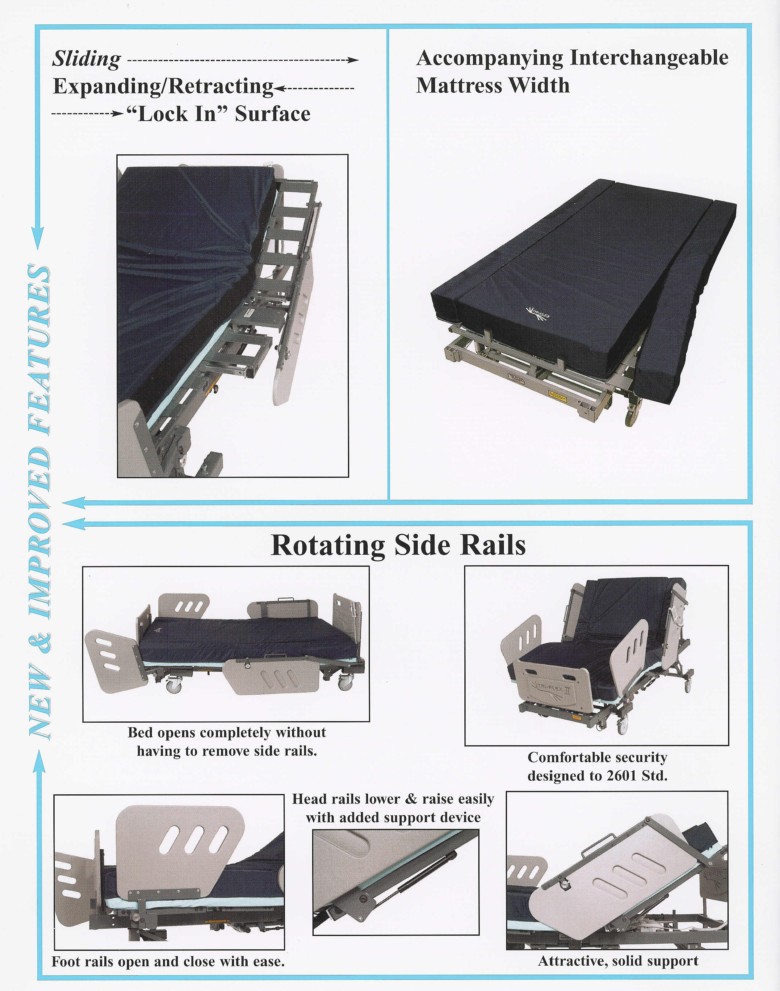

Rotating Side Rails

Fold & Roll
"Fold & Roll"

Easy 1 person delivery
Takes 1/3 usual storage space.

BURKE TRI-FLEX

Burke Bariatric Heavy Duty Hospital Beds- Burke Triflex and Burke Bariatric Treatment System II Heavy Duty Hospital Beds,1,000 lb. weight capacity, patient bad, caregiver bed, multiple positioning

1 Person Delivery System

~ Self Contained

~ Folds up, locks in, ready to roll

~ Easily clears 31" doorways

~ Quick preparation for patient use

~ Offers multiple support functions
    to both the patient and the
   caregiver.

VIDEO - 56k

VIDEO - DSL

http://easylink.playstream.com/electropedic/bariatric56k.wvx

http://easylink.playstream.com/electropedic/bariatricDSL.wvx

~ 1,000 Lb. Capacity

~ 2 Widths in One

~ Compact "Fold & Roll" Design

~ Multiple Positioning

~ Low Air Loss Surface Option

~ Integrated Scale Option

~ State of the Art" Low Voltage
   Actuator System

 Burke Bariatric Heavy Duty Hospital Beds- Burke Triflex and Burke Bariatric Treatment System II Heavy Duty Hospital Beds,1,000 lb. weight capacity, patient bad, caregiver bed, multiple positioning

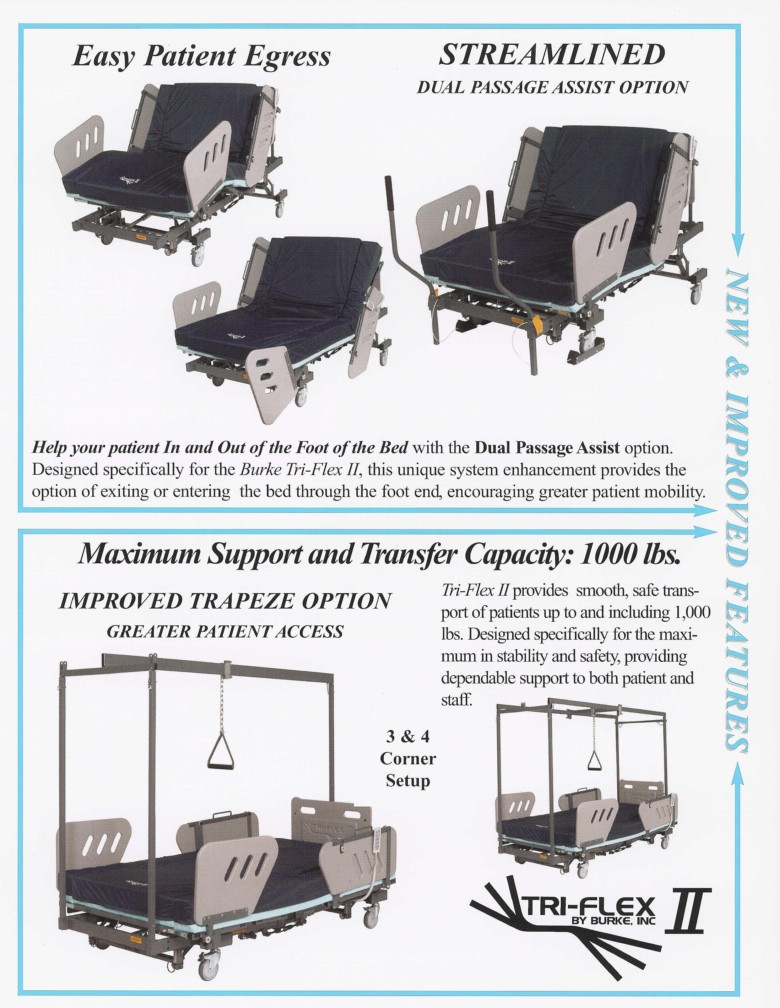

Easy Patient Egress hospital adjustable

Heavy Duty BAriatric Hospital Bed

Facts & Specifications

  •  - Heavy Duty Hospital Bed

  • - 1,000 lb. weight capacity

  • - Low air loss/alternating pressure surface option

  • - Integrated scale option

  • - Pressure reducing 5" foam mattress system

  • - Adjustable, powder coated half side rails

  • telescoping to 6"

  • - Oak finish head & foot boards

  • - Modular electronics pkg:

  • Approved to CSA, UL & CE standards

  • - Low power consumption 1.6 amps

  • - Hospital grade plug

  • - Heavy duty 6" x 1 1/4" Steer & Lock casters

  • - Length: End to End 92 1/2" (7’8 1/2")

  • - Patient surface length 84" (7’) With extension 96" (8’)

UL 60601

IMPORTANT SAFETY AND REGULATORY INFORMATION

FEDERAL REGULATIONS REQUIRE UL TESTING / LISTING

FOR HOSPITAL BEDS



Tri-Flex II Questions


What is the weight capacity?

1,000 lbs.

Can you have a 1,000 lb. patient on the bed and the trapeze set?

Yes.

What are the benefits of the “Fold & Roll” design?

- 1 person can easily deliver the bed.
- Takes up 1/3 of the space of a regular design bed whether in transit or in storage.

What comes standard with the bed?

- 1,000 lb. Capacity Frame with extra width capability from 37” to 48”
- “Fold & Roll” Design for 1 person delivery system and easy storage
- Fully electric with Hi-Lo, Trendelenberg/Reverse Trendelenberg, Full Head & Knee Gatch Adjustment
- 1 Hand Control
- 2 Head Side Rails
- 7” pressure reducing foam mattress with accompanying sections for extra  width capability
- Molded Plastic Head & Foot Boards
- CPR Release & Battery Back Up


How do you make the patient surface width wider or narrower?

Sections along each side of the bed release and slide out or in to lock into place.

How does that work with the foam pressure reducing mattress?

The foam mattress is a 3 piece arrangement that offers side bolsters for the wider position. They are removed when reducing the patient surface width to transfer the patient on the bed to a new location.

Can the scale option be installed in the field?

No. The integrated scale system must be installed at the factory.

How wide and long is the patient surface of the bed?

37” Wide to 48” Wide and 86” Long

How current is the Tri-Flex II’s UL Certification?

The Tri-Flex II has passed the UL 60601 Certification testing in its entirety. Many bariatric beds in the market may have only parts of the bed certified to one standard or another, for example, only the electrical package may have this level of safety assurance. The Tri-Flex II has passed the UL 60601 testing as a complete and total bed. Also known as 2601, this is the industry’s latest
and most stringent compliance classification and will be around for years to come.



Triton Questions


What is the weight capacity?

600 lbs.

Can you have a 600 lb. patient on the bed and the trapeze set?

Yes.

What comes standard with the homecare bed?

The bed is available in a “take or leave” format:

Base Bed
Platform, Head & Foot Boards, full electrical package

Options
Head Side Rails
Foot Side Rails
Mattress - foam, pressure reducing, 7” x 48” x 84”
Trapeze/Traction Set
Casters (set of 4)
Deluxe Battery Back Up

What movement does the electrical package include?

Hi-Lo, Trendelenberg/Reverse Tren, Independent Head & Knee

REQUEST

 Burke, Inc. has been a manufacturer of bariatric bed frames for over 20 years  and employs two plant locations. Burke also functions as a provider of OEM products. Our newest Bariatric Bed frame: the Tri-Flex II.

Having created the original “Big Boy” bed, later known as the Burke Bariatric Treatment System or BBTS, Burke, Inc’s newest bariatric bed  frame is the Tri-Flex II, featuring: 1,000 LB capacity, static & transfer; 2 patient surface widths in one frame; providing all positions; fully electric with battery back up; unique “Fold & Roll” design for easy delivery and set up;  integrated scales and full frame trapeze options;  Patient egress from the foot of the bed capable.

To requeston our products, literature and/or pricing you   may e-mail us via the form below, or call us at 1-800-255-4147.
We are located at 1800 Merriam Lane, Kansas City, KS 66202.



Manufactured by Burke Inc. - Makers of the Burke Bariatric Treatment System I & II (The original "Big Boy Bed"), a proven industry standard. Burke - the name you can trust
