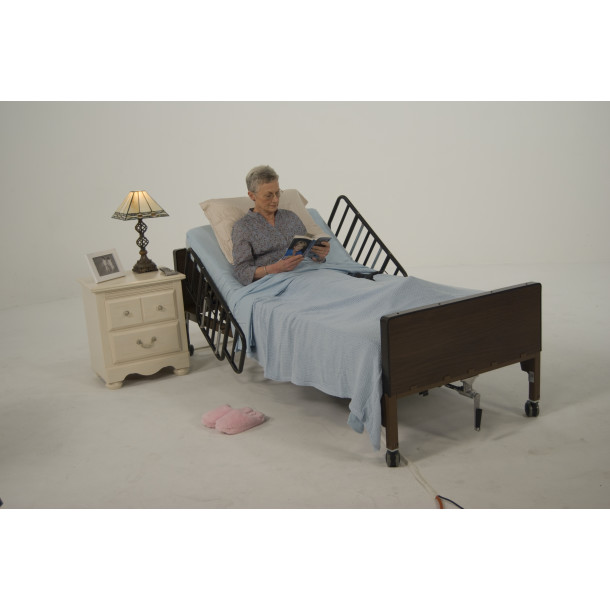

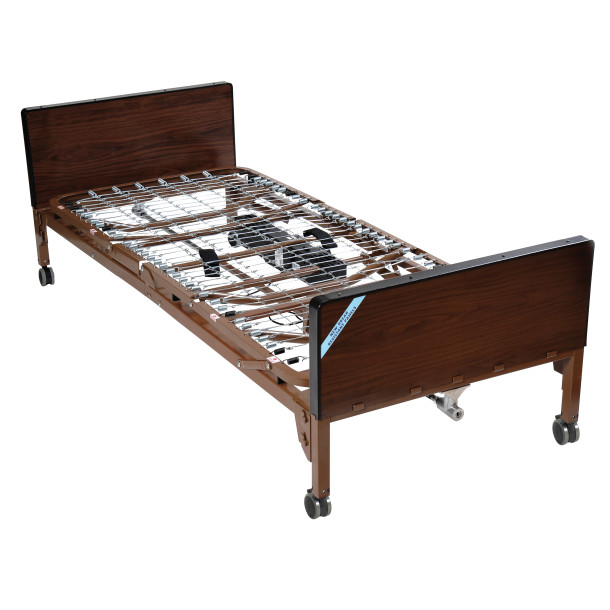

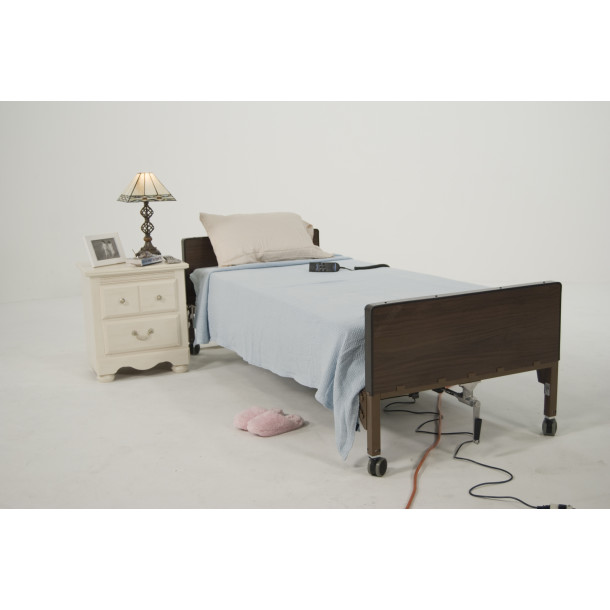

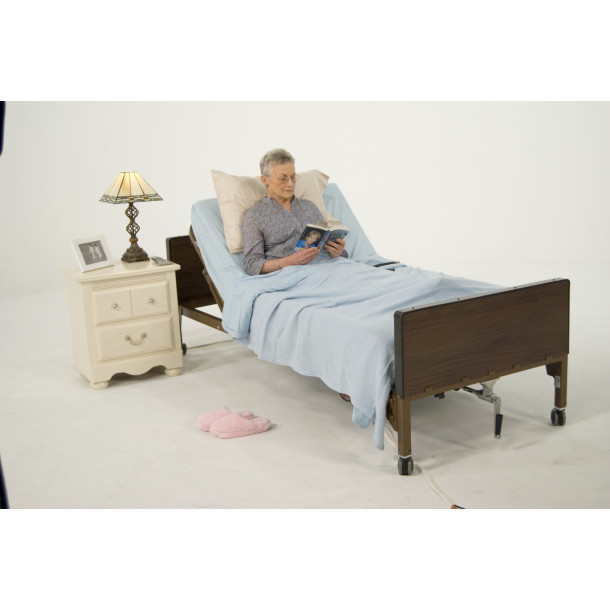

DRIVE 3 MOTOR LOW HOSPITAL ELECTRIC BED

DRIVE MEDICAL ELECTRIC LOW 3 MOTOR HOSPITAL BED OWNER'S MANUAL

SPECIFICATION

Bed Height Maximum With Casters 23.5"
Bed Height Minimum Without Casters 9.5"
Carton Shipping Weight 191 lbs.
Unit Dimensions 36" (W) x 88" (L)
Warranty (Original Purchaser) 5 Years on Motor and Hand Control, Limited Lifetime on Welds and Frame, 1 Year on All Other Parts and Components
Weight 175 lbs.
Weight Capacity 450 lbs
Bed Height Min wo caster 9.5"
Bed Height Max w casters 23.5"

drive medical 3 motor low hospital bed FEATURES/BENEFITS

  • The Delta 1000 is truly universal because the bed frame can be used with Drive's and most other manufacturers’ bed ends, old and new
  • The transition box mounted on the foot section is key to interchangeability (Figure A)
  • The transition box allows you to change the rotation of the high/low shaft
  • Headboard is taller than footboard to better fit home decor (Figure B)
  • The wood grain panels are break and scratch resistant
  • Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)
  • Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)
  • Unique motor is completely self-contained to reduce weight and noise
  • 9 ½" to 23 ½" deck height
  • Easy to set up
  • Top mounted Hi/Lo crank accessibility
  • Height-adjustable motor comes pre-installed on the foot section
  • Caster easily moves from standard to low bed position
  • The motor assembly can be installed and removed with patient in bed
  • Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility Satisfies all applicable FDA entrapment guidelines
  • The motor is UL approved
  • In the event of a power failure, a 9 volt battery, located in the hand control, can lower the head and foot sections nine times

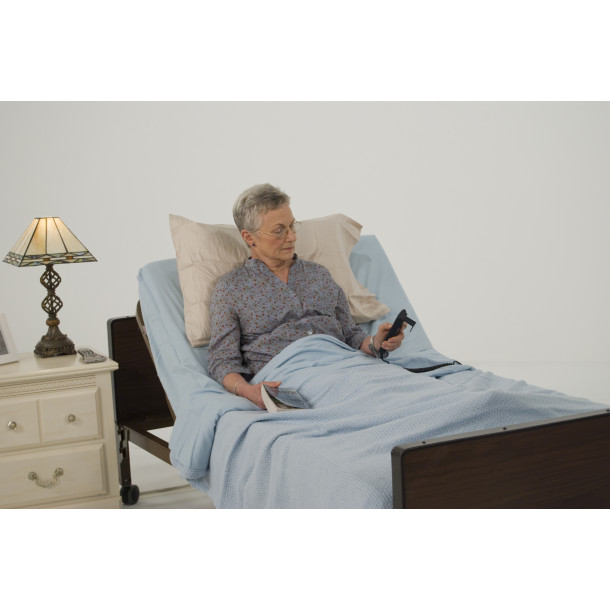

  • New and improved hand pendant has large, easy-to-use controls (Figure E)
  • Bed ships in two cartons
  • Hand crank located on the top of the footboard prevents bending for the caregiver when in the low position (Figure F)
  • Channel frame construction provides superior strength and reduced weight
  • Zinc-coated spring deck
  • Extension kit available (model #15030EXTKIT) extends length from 80" to 84"
  • Patent Pending
  • Weight Capacity 450 lbs
