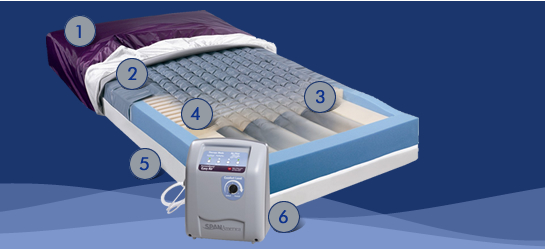

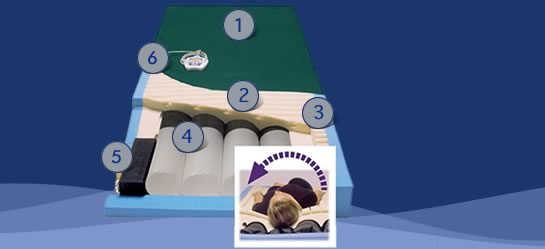

1 Cover

The bacteriostatic top fabric is fire resistant, fluidproof, tear resistant, cleanable, and replaceable. The pleated design allows full integration with the mattress’s Geo-Matt style shear-relieving surface while minimizing hammocking.

2 Foam Topper

The patented Geo-Matt® style foam topper is a high density, medical grade foam. The unique geometric design consists of over 800 individual cells, each of which acts individually to redistribute pressure, to reduce heat and moisture buildup on the skin, and to reduce shear to underlying tissues. This foam topper is 2" in height and includes the unique Heel Slope™ feature, designed to further reduce pressure for the sensitive heel area.

3 Safety Edge Bolsters

Unique raised perimeter Wings® design combines with the patented Safety Edge™ bolster system to encourage the patient toward the mattress and away from entrapment or falls. Lowered, padded opening makes transfers easier and safer for user and caregiver. The Safety Edge consists of a firm 2-part foam bolster whose inner edge contours under pressure to direct the patient towards the center of the mattress.

4 Air Cylinders

The inflation system consists of four urethane air cylinders that run head to foot underneath the body and the foam topper. These cylinders perform the Lateral Rotation Therapy. Inflation/deflation cycles are set but the hand-held control pendant.

5 Micro-Processor Motion Systems

Uniquely built into the side of the mattress, the micro-processor controls air pressures within the air cylinders, and is programmed by the hand-held pendant.

6 Hand-Held Control Pendant

Offers convenient way for caregiver or patient to program the motion system.





The purple-colored coverlet is fluid proof, cleanable and flame resistant. It is highly vapor permeable (4500 grams/meter2/24 hours) and fluid-proof.  Both of its fabrics (smooth top fabric and the crush-proof air diffusion matrix fabric) are bacteriostatic and maintain a pathway for air flow, even under patient weight. Coverlet can be routinely wiped clean and disinfected in place, or can be removed and machine laundered according to owner’s manual.

The greenish gray, multi-layered cover supplies air to the microenvironment between the cover and coverlet while serving as a barrier to protect the inside of the mattress from both fluids and vapors,  Unlike the purple removable coverlet, it is intended to remain on the mattress at all times.



The inflation system consists of four air cylinders that run lengthwise underneath the body. Unlike standard low air loss systems, the Easy Air does not lose air from the inflation system for "low air loss", and can be programmed to perform either “flotation” or “alternating pressure.”

The patented Geo-Matt® style foam topper is a high density, medical grade foam.  The unique geometric design consists of over 800 individual cells, each of which acts individually to customize patient comfort, support, and pressure reduction and redistribution. This foam topper is 2" in height and includes the unique Heel Slope™ feature, designed to further reduce pressure for the sensitive heel area.

The patented Safety Edge™ consists of a  firm 2-part foam bolster whose inner edge contours under pressure to direct the patient towards the center of the mattress.  This adds to patient stability in sitting and lying down, and helps prevent falls and entrapment between the siderail and the mattress.

The quiet, energy efficient control unit houses both a high volume air blower and a lower volume air pump. The blower component provides air for the low air loss function through the cover/coverlet, while the pump component provides air to the air-cylinder inflation system.  The filters on the control unit need to be cleaned regularly.
