We were the FIRST! Electric Home Care Equipment Company.
In fact, we invented the industry!
Since 1964 - Member BBB Report - SERVING ALL AREAS
GUARANTEED LOWEST PRICE: Please call (800)727-1954
Please call for a Wheelchair Elevator Brochure and Price List
We pride ourselves on doing something for the Quality of Your Life.
When you call our company we start with an "Initial Intake Form" to ensure we have
the right knowledge to help you get the right
PL50 / PL72 / PL 50 72 / Ma
c / MacsLift / Macs / Vertical Platform Lift / Porch
Wheelchair Mobility Elevator / Mac's and model. It
all starts with Communication. Our
motto since 1964 has been "Your Comfort Is Everything!" . . . and when you have
been doing the same thing for 45 years, you get pretty good at it.
We are here working for you and your satisfaction
as our first and foremost priority. Communication is the key to finding the
correct
PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch
Wheelchair Mobility Elevator / Mac's and model for your height, weight, age, physical and
environmental conditions. We believe that talking first, the old fashioned way,
is the most effective way to ensure your satisfaction with the purchase. Buying
online, by yourself, in our opinion, is a little too complicated, important and
expensive a decision to make without first talking to a trained
Equipment Specialist. We are also the actual manufacturer of the Electropedic
PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch
Wheelchair Mobility Elevator / Mac's
Our Philosophy:
Communication is Key
We appreciate that Cost is a key factor for everyone, whether you are a millionaire or are primarily living off Social Security. That is why during our Communication we ask you if Cost is your foremost priority.
Results are what we are both after: We understand that you want a PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch Wheelchair Mobility Elevator / Mac's that will be the best for you. We understand that the only way you will come back to us or recommend us to your friends and family is by your satisfaction. Today, 25% of our business is built upon repeat and referral customers. Many of our customers have purchased from us 3 and 4 times. If you are not happy with the outcome then, maybe, we did communicate as well as possible with you. This much is certain: no one will know more about the electric home care industry than us, no one will care more about getting you the right PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch Wheelchair Mobility Elevator / Mac's and model, and no one will offer you a better price.
We were the FIRST! Electric Home Care Equipment Company.
In fact, we invented
the industry!
Since 1964 - Member BBB
Report - SERVING ALL AREAS
GUARANTEED LOWEST PRICE:
Please call (800)727-1954
heavy duty lightweight portable store company inexpensive ratings bariatrics find discount pricing rating power motorized powered automatic electronic company electrical home page pics info pictures video hospital bariatric electrically used lifting American care centers clinic healthcare clinics center equipment supplies rehab services resources sale big insurance mobility obesity lifters www com cheap sale benefits mobility medical elderly senior my about best quality prices buy co cost usa discount online store dealer manufacturer factory review information

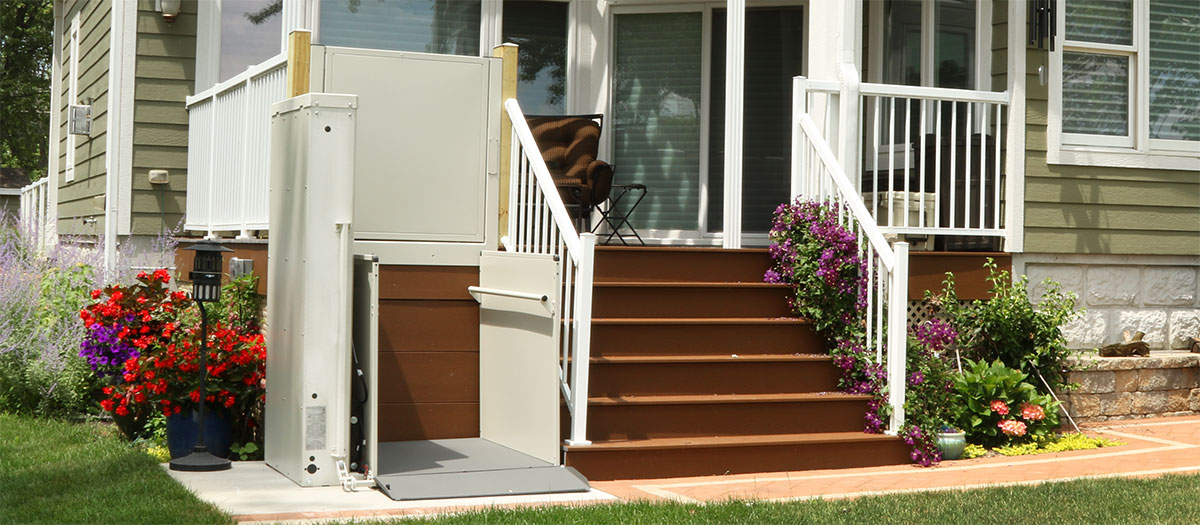

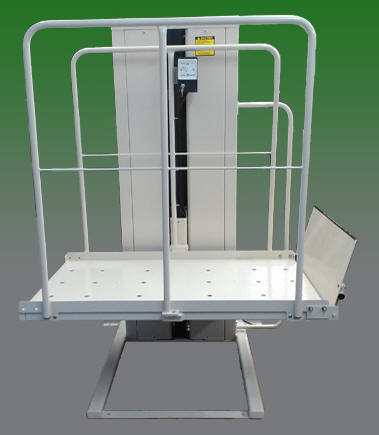

The PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch Wheelchair Mobility Elevator / Mac's described herein, manufactured by Mac's Lift Gate Inc., Long Beach, CA, is a precision vertical platform lifting device consisting of a machine tower with lifting platform, selected and dimensioned to provide adequate lifting height to suit the residential building requirement. The lift is capable of being used indoors and outdoors to vertically transport a wheelchair user or otherwise mobility-impaired person, up and over a low-rise barrier created by stairs, thus creating access to or within the building.
MAC'S Vertical home Lift PL-50 PL50 PL72 Elevator, mobility, mattress
MAC'S Vertical home Lift PL-50 PL50 PL72 Elevator
A company with not less than forty (40) years of experience in the design, fabrication and installation of specialized lifting equipment for handicapped and geriatric consumers should supply the lift.
The unit shall be assembled and pre-wired (less optional equipment and necessary
gates) and manufactured with adequate lifting and load capacity for application
described elsewhere in this specification.
The unit shall be easy to operate by the user or attendant, and shall be
capable of functioning in all weather conditions.
The unit shall have the capacity to lift up to 500lbs. to the desired
lifting height up to a maximum lift height of 50 inches (4 feet 2 inches)
and 72 inches (6 feet).
Machine tower: 14 gage cold rolled steel.
Base frame: 1 1/2" square x 3/16" wall structure steel tubing.
Lift weldment: 1 1/2" x 3" x .188" wall structure steel tubing.
Tower cap: 10 gage cold rolled steel plate
Side Guard Panels: 20 gage cold rolled steel sheet panel, 1" square
x .120" & .083" gauge steel tubing (frame).
Platform: 14 gage cold rolled steel plate with slip resistance surface.
Access ramp: 11 gage steel steel plate with slip resistance surface.
Electrical box: 16 gage galvanized steel
Switch box: Hi-impact A.B.S. Thermoplastic instrument case.
Limitations: Vertical platform lift shall operate both indoors and
out, and must be anchored on a level, 4" thick, 3500 psi reinforced concrete
surface or pad.
The unit shall be pre-wired by manufacturer with exterior grade thermoplastic coated wiring. Extension Cord, 14 gage Ul-cSA approved is recommended if power source is not within three (3) feet of Machine tower. Machine may also be wired using water proof conduit.
1. 3 Stage wash, soapy water, clear water, and Iron Phosphate which
is applied to parts.
2. Parts are inspected and scuffed
3. Epoxy Primer is applied
4. Parts are baked at 250 degrees for 15 minutes
5. Parts are inspected and scuffed if needed
6. Huebert O'Brian Powder-TGIC Polyester
7. Mixed with Paint, Color Almond PFT-500-S8
8. Powder Coat is applied and baked at 400 degrees for 30 minutes
9. Parts are inspected and scuffed if needed
The unit shall have the following safety features for protection of users and the general public:
Upper and lower limit switches
Final limits switch
Instant Reverse Motor
Powered with 110 volt AC current, by 1/2 HP motor, 6.4 Amp
Grounded electrical system
Heavy duty worm drive gear box with heavy duty #50 lifting chain
Automatic access ramp
36" solid sides on non-enter and exit sides of platform
Non-Skid platform and access ramp surface
Key-lock control
Emergency stop switch on main platform control
Platform safety pan to stop decent of platform if obstruction is encountered
3" locking top and bottom landing gates provided with mechanical G.A.L. interlock
Switching & Control system 24 VAC low voltage current
The contractor shall do all work and supply all materials necessary for the complete installation. It is the intent of this specification to outline boradly the equipment required but not to cover the details of design and construction.
Maintenance of the vertical platform lift unit shall consist of regular cleaning of the unit, protection of the painted surface of the unit.
Unit shall have one (1) year limited warranty on the basic unit and electrical system with a two (2) year warranty of drive train components.
This specification has been written to assist you and your consumer in preparing an accurate and detailed descsription for specifying a vertical platform lift. All or part of this specification may be reproduced. Additional technicalis available from our PL50 / PL72 / PL 50 72 / Mac / MacsLift / Macs / Vertical Platform Lift / Porch Wheelchair Mobility Elevator / Mac's Engineering Department.
| LA MAC'S Vertical Home Lift PL50 & PL72 Specifications Wheelchair Elevator Los Angeles for School, Porch, Mobile Home, Residential, Commercial, Church - American Disabilities Act - ADA - Handicap Elevators |
LA ELEVATOR, LOS ANGELES
Porch School Mobile Home Church Wheelchair Elevators
Before You Buy An Electric Wheelchair-Elevator, we ask you the
following
questions:
1. How many feet do you have to go up?
If you are using the Wheelchair Elevator for a simple Porch-type
Setting, we would highly recommend the
MAC PL-50
(for up to 52")
or the PL-72 (up to 72") or the Wheelchair Elevators by
Trus-T-Lift. The
Trus-T-Lift manufactures Models that can go all the way up from the first
story to the second story.
ConcordMac's LiftTrus-T-LiftRam Manufacturing
|
No one knows more about the Electrical Home Care Products Industry.
No one will Care more about getting you the Right Product, Model and Options.
No one will get you a better Price.
No one will give you better Service after the sale.
We know that Cost is a key factor, whether you are a
millionaire or are primarily living off Social Security.
Please
